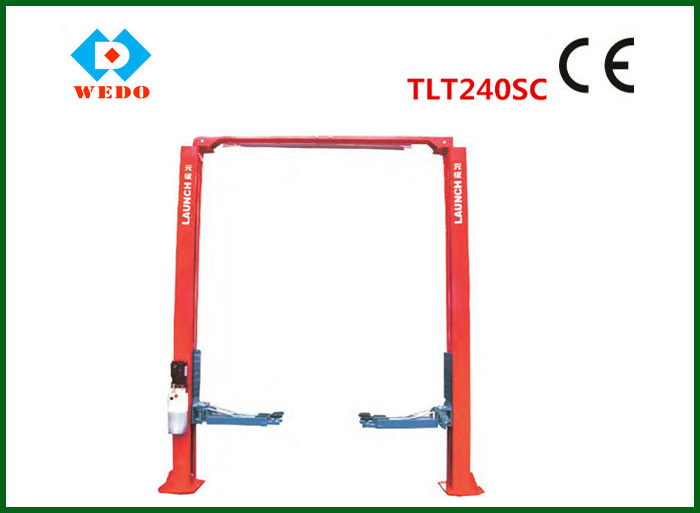

TLT240SC

TLT240SC

★ Launch brand original products ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

TLT240SC



1.Bilateral manual safety unlocking system.
2.The cable and oil oil pipe are fully concealed; with decent and elegant appearance.
3.Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
4.Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.
5.24V low voltage control box (IP54 level) ensures operator’s safety.
6.24V cylinder travel limit switch effectively protects cylinder and extends its lifespan.
7.Door rubber pad protects car door from being damaged in collision.
8.More lifting pads with different height meets the requirements for light lorries and SUVs.
9.Passed 115% dynamic loading test and 150% static loading test.
10.CE certificated.
11.Symmetric and asymmetric installation types are optional.

Economical Clear Floor Launch Auto Lift Launch TLT240SC

Technical parameters
Rated load: 4000kg
Lifting height: 1850mm
Initial height: 110mm
Lifting time: ≤50s
Lowering time: ≥20s≤40s

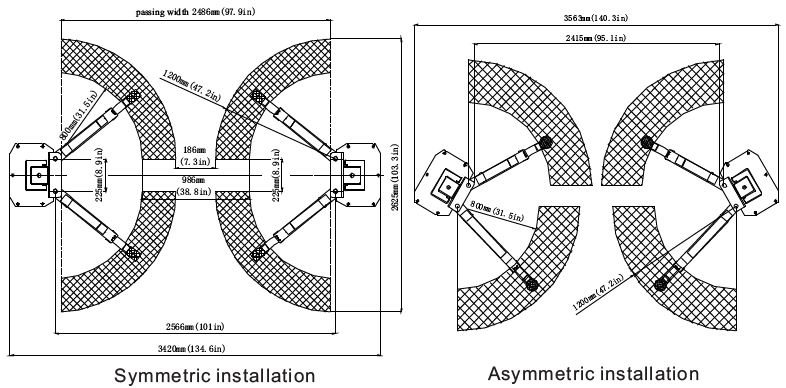

Passing width for symmetric installation: 2486mm
Overall width for symmetric installation: 3420mm
Passing width for asymmetric installation: 2415mm
Overall width for asymmetric installation: 3563mm

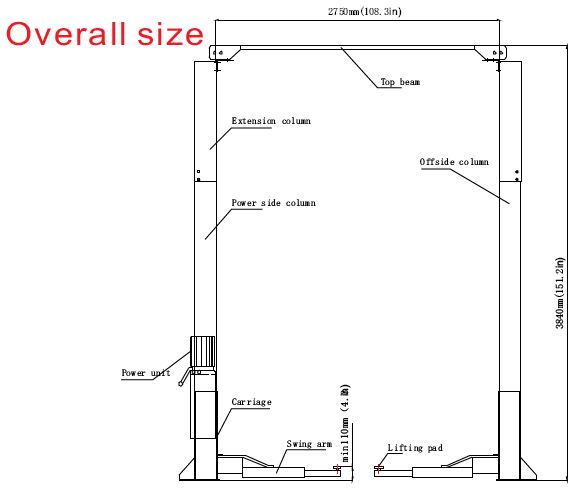

Over height: 3840mm
Motor power: 2.2kw
Motor voltage: 3 phase/380v or single phase/220v
Working noise: ≤75dB(A)
Working oil pressure: 18M Pa



More details:
TLT240SC

TLT240SC MANUAL
