Launch-TLT455W

Launch-TLT455W

Launch four post lift TLT455W ★ Launch brand original products ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

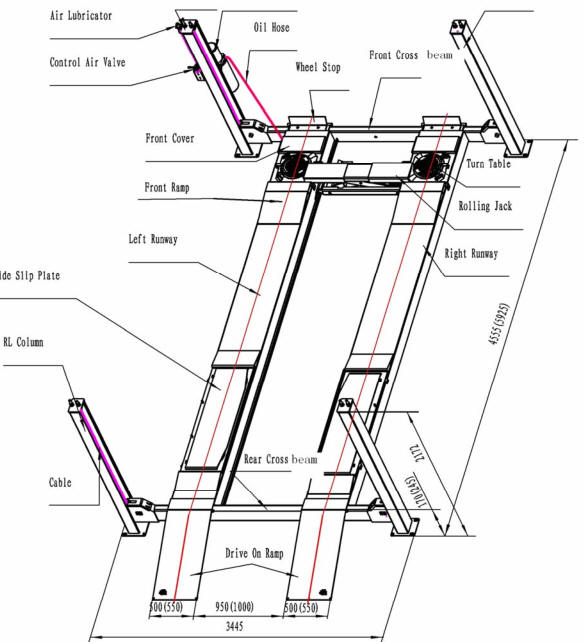

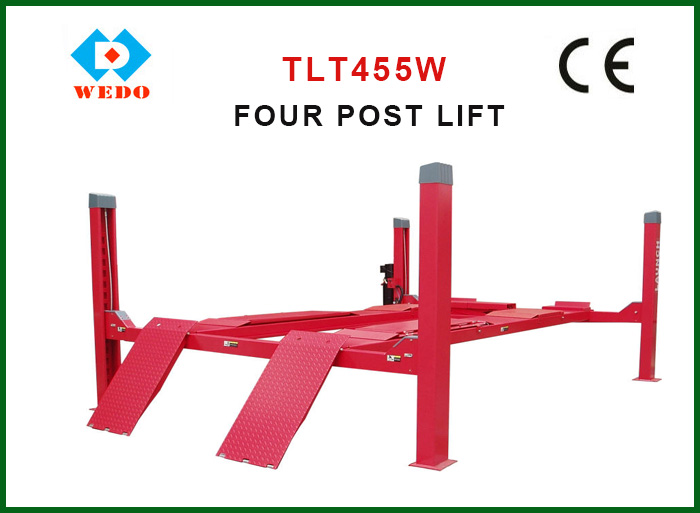

Launch four post lift TLT455W

Wheel Alignment 4 Post Lift (Rated Capacity: 4 Ton) is used for lifting of various small and medium-sized vehicles with total weight below 4.0t in garage and workshop.
1.Designed based on the international standard, meeting the demand of the garage and workshop.
2.Driven by hydraulic cylinder in stable lifting and lowering.
3.Offering full-range mechanical safety protection by using the safety latches.
4.Connected by four steel cables; forced synchronized movement of the lift in order to effectively prevent the sloping of the vehicles.
5.Equipped with rolling jack, turntable and sideslip, suitable for wheel alignment.
6.Adjustable distance between runways to accommodate different wheel track.

Specification

*Load capacity(kg) 5500
*Lifting height(mm) 1850
*Raising time(s) t≤60
*Lowering time(s) 20≤t≤40
*Power(kw) 2.2
*Passing width(mm) 3045
*Equipment width(mm) 3445
*Equipment height(mm) 2172
*Runway length(mm) 5600
*Runway width(mm) 550
*Max wheel base(mm) 2100
*Min wheel base(mm) 1000
*Lowest height(mm) 250
Rolling jack:
*Capacity(kg): 2750
Lifting height(mm) 250
Raising time(s) t≤30
Lowering time(s) 10≤t≤20
