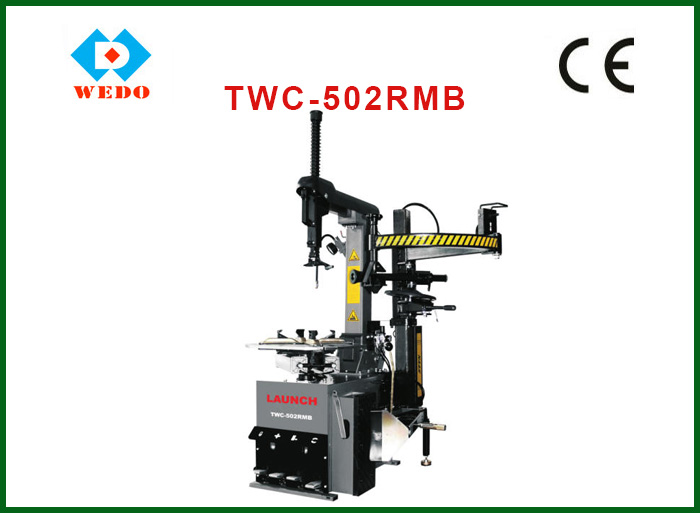

Launch TWC502RMB

Launch tire changer-TWC502RMB


Feature:
◆Pneumatically operated tilting column
◆Simultaneous pneumatic horizontal and vertical arm locking
◆Capable of handling stiff, wide and low-profile tire
◆Right help arm

Specifications:
Motor power: 0.75kw/0.55kw/1.1kw
Power supply:  220V/400V/110V

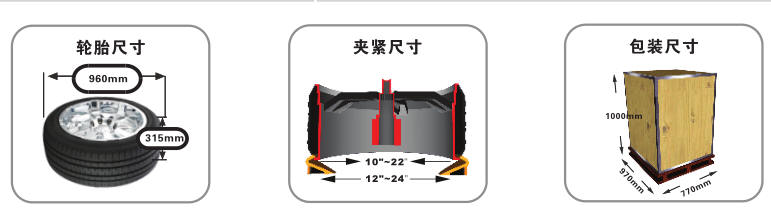

Max. wheel diameter: 40"(960mm)
Max. wheel width : 14"(355mm)
Outside clamping : 10"～22"
Inside clamping  : 12"～24"
Air supply  :  8bar
Bead breaker force : 2500kg
Noise level  : <70dB
Carton Size :  960*760*930(main body)
                      1230*450*350mm(help arm)
Weight  : 256/287kg
