Launch KWB503

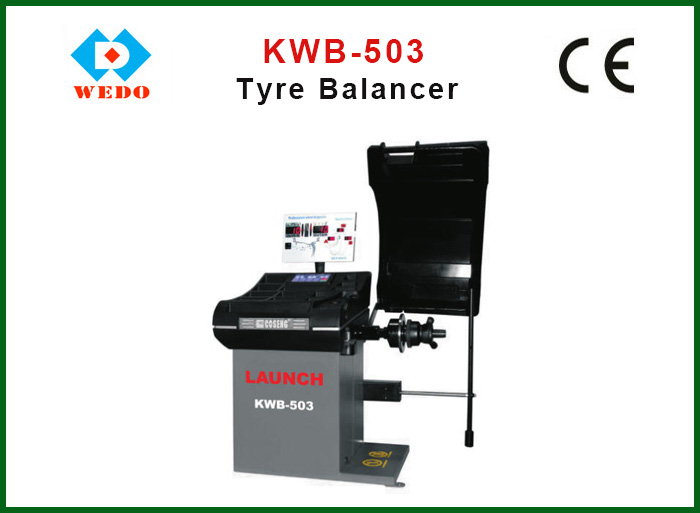

Launch wheel balancer-KWB503


Feature:

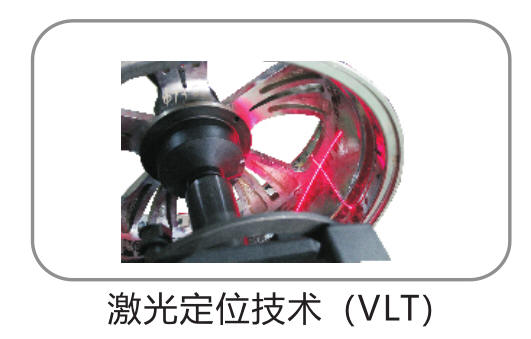

Laser positioning technology to accurately indicate the unbalance point in ALU mode

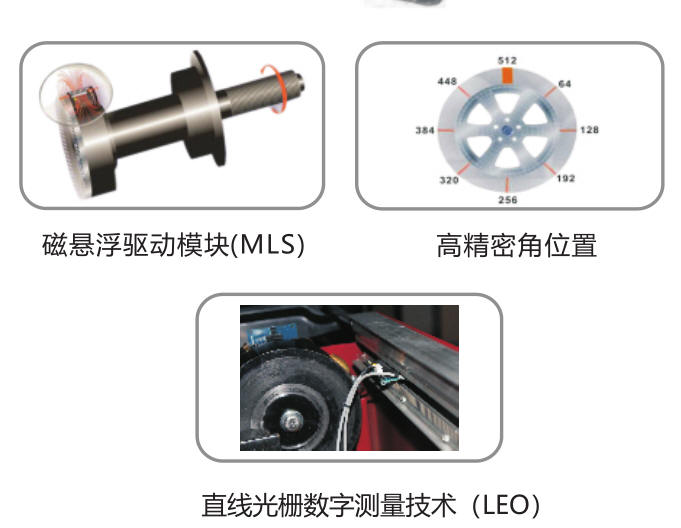

Using magnetic levitation drive module, unbalance point can be automatically found, with higher accuracy and lower failure rate.
512 angular position for position detection; higher accuracy
Intelligent electromagnetic locking technology, automatic positioning and locking of unbalanced points, more convenient operation
Linear grating digital measurement technology can automatically and accurately measure data with good linearity and repeatability.
Long service life
Advanced Rotary Braking to Realize Automatic Reactive Power Consumption Braking
Quadruple Frequency Coding Technology
Intelligent Preservation of Relevant Parameters
Built-in 11 balancing modes, including 8 car balancing modes and 3 motorcycle balancing modes
Cars: NORMAL, STATIC, APS, ALU-S, ALU-2, ALU-3, ALU-4, ALU-5
Motorcycle: NORMAL, STATIC, APS
Supporting the conversion between units of measurement "ounces" and "grams" and between car and motorcycle balancing modes
Optional protective cover, not only waterproof and anti-fouling, but also set the switch to start.
Support for automatic and manual double input
　
Specifications:
Max. wheel weight   80kg
Motor power  0.2kw/0.37kw
Power supply 220V/110V
Balancing accuracy  ±1g
Balancing speed       220r.p.m
Rim diameter 10"～30"
Rim Width 1.5"～20"
Measuring time 8sec.
Noise level <70dB
Package size 970*770*1130mm
Weight 95/126kg
　

More Detail:
