Launch 3D Four wheel aligner- X831S
|
Professional, Reliable, Affordable |
Specification:
Measuring parameter:Intelligent Auto Lifting
Display accuracy: Range - , Accuracy 1/0.01°/0.1mm
Camber: Range ± 10°, Accuracy ± 2'
Caster: Range ± 20°, Accuracy ± 6'
K.P.I.: Range ± 20°, Accuracy ± 6'
Toe-in: Range ± 20°, Accuracy ± 2'
Set back: Range ± 5°, Accuracy ± 2'
Thrust angle: Range ± 5°, Accuracy ± 2'
Thread: Range 1,800mm, Accuracy ± 1mm
Wheelbase: Range 3,500mm, Accuracy ± 2mm
Machine in the factory with valid calibration and it is not necessary to perform calibration at the customer site
Roll the vehicle to complete the compensation, quickly to get the measurement data in two minutes
Auto compensation with special clamps and no need to roll the vehicle Functions of the Track Width, wheelbase, Tire Diameter, Caster Trail, etc
Free from the influence of ambient light and temperature, stable and reliable
The camera bar tracks four targets automatically, more convenient and widespread measurement in shorter time

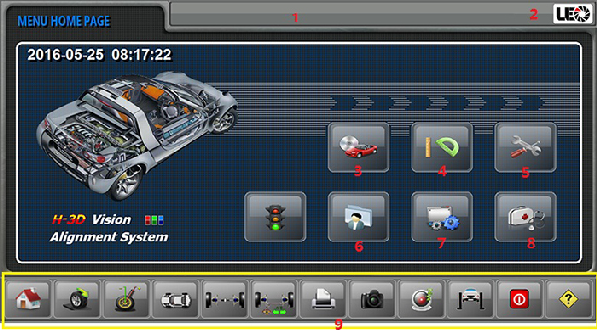

Main Menu
1. The name of the workshop;
2. The logo of the aligner producer;
3. Select vehicle specification;
4. Measurement menu including four wheel or two wheel alignment,chassis parameter measurement，and raising adjustment;
5. Adjustment Menu including rear wheel adjustment and front wheel adjustment;
6. Customer Information;
7. System Setting;
8. System Maintenance;
9. System short key including main menu, wheel alignment, data screen,rear wheel adjustment, front wheel adjustment, printer, camera viewer, screen saver, vehicle driving guidance, exit the software and help document.

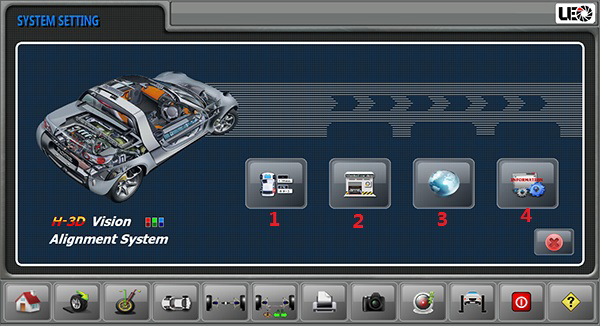

System Settings
1. Unit Setting;
2. The information of the workshop
3. Multi-language selection;
4. System Information.

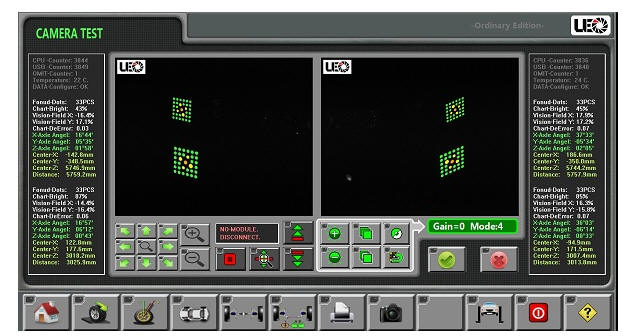

From this picture the technician can tell you if the cameras are working properly, if the communication between the camera and the computer is OK. It can also tell you if the target is clean by check the dots the camera have been captured. For the auto tracking aligner, in this screen, we can control the camera beam to move up and down step by step. For the more, it can also tell you the distance between the camera and the targets.
