WD-S-305

WD-S-305

★ 30 years production experience ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

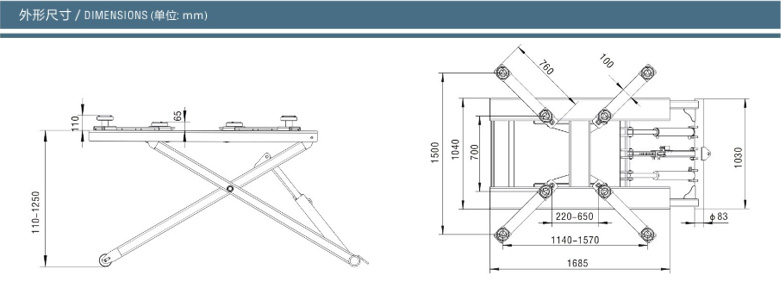

Technical Specifications:

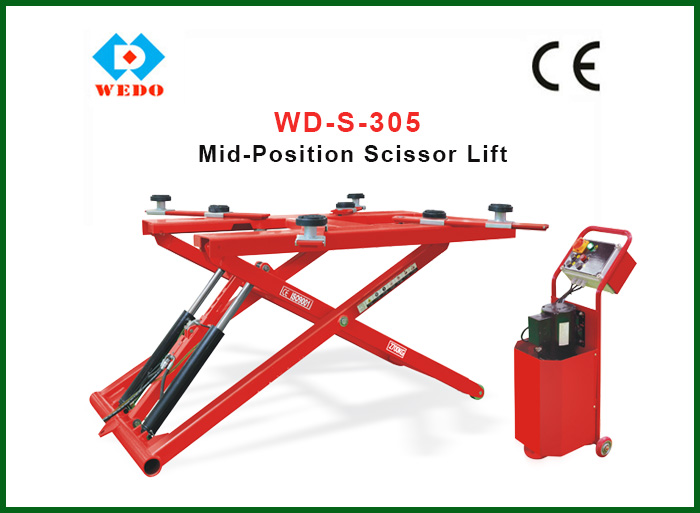

MID-POSITION SCISSOR LIFT WD-S-305
Lifting capacity 2700kg
Lifting height 1250mm
Min.Height 110mm
Liting time 30-50s
Length of the platform 1685mm
Platform width 1040mm
Motor power 3.0kw-380v or3.0kw-220v
Oil pressure Rating 24Mpa
Air pressure 0.6-0.8Mpa
Weight 450kg


Characteristics:

1. Pneumatic release, safe and reliable
2. The initial height is lower(110mm), have sliding ramp and extension
3. Adopt axis drived, synchronization performance good, lifting capacity well.
4. Hydraulic system adopted imported electromagnetic valve and seal components, ensure the stability and working life of the machine.
5. When the power supply is off, lift and vehicle can be down by manual
6. Rising and falling have safety alarm device.
7. Oil cylinder with upper return oil, prevent oil cylinder rust.
