WD-S-301

WD-S-301

★ 30 years production experience ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

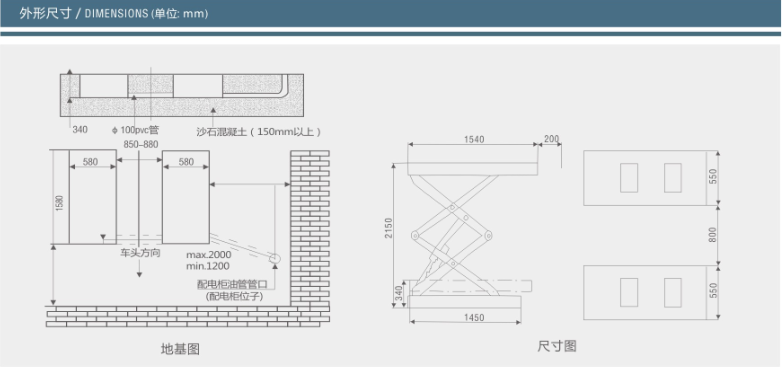

Technical Specifications:

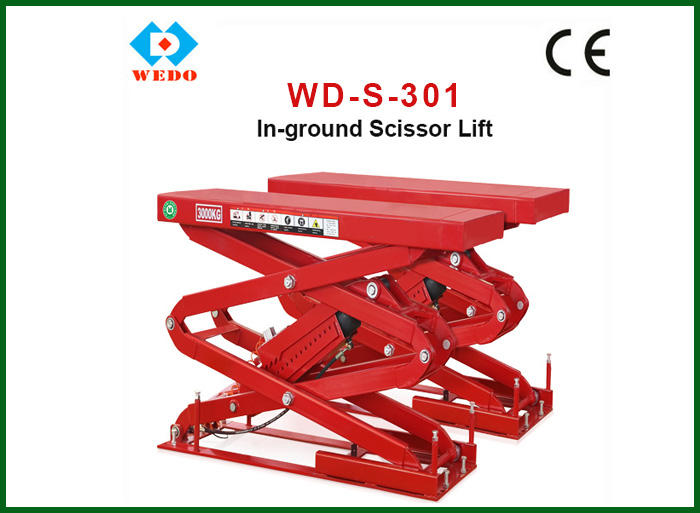

IN-GROUND SCISSOR LIFT WD-S-301
Lifting capacity 3000kg
Lifting height 2100mm
Min.Height 340mm
Liting time 50-60s
Length of the platform 1540mm
Platform width 550mm
Motor power 3.0kw-380v or3.0kw-220v
Oil pressure Rating 24Mpa
Air pressure 0.6-0.8Mpa
Weight 800kg

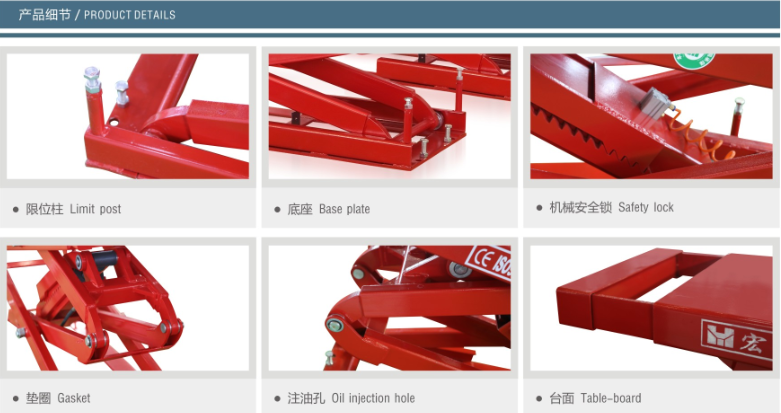

Characteristics:

1. Utilizing ground hidden flat structure, and cover small space
2. Pneumatic self-locking, safe and reliable
3. Hydraulic system adopts and integrated valve plated system with imported seal, ensure the stability and working life of the machine
4. With manual pre-interface,when power supply is off, lift can be down by manual
5. It is composed of four parts, hydraulic system, pneumatic system and electric system
6. Oil cylinder with upper return oil, prevent oil cylinder rust
