WD-8140C

WD-8140C

★ 30 years production experience ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

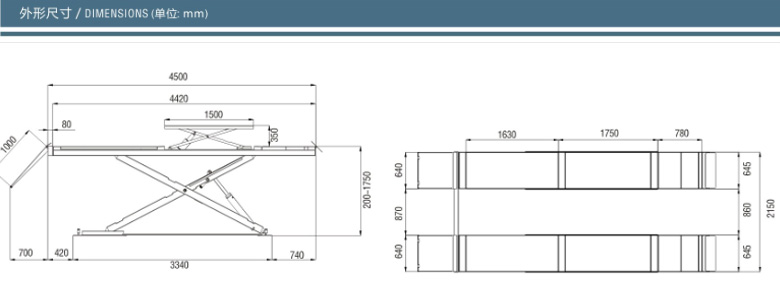

Technical Specifications:

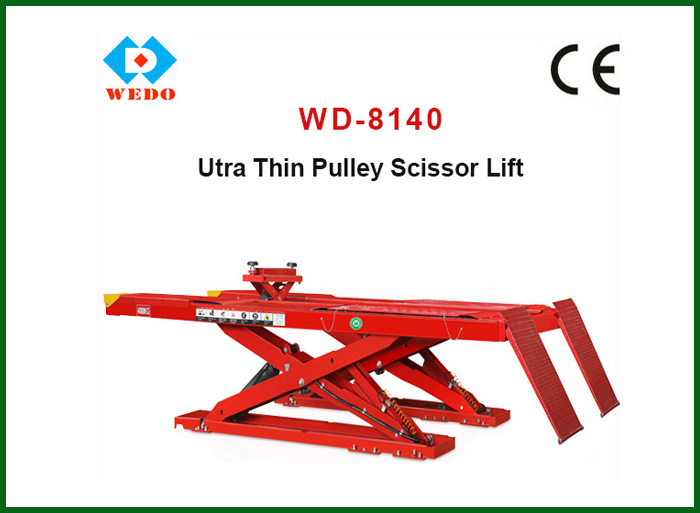

ULTRA THIN SCISSOR LIFT WD-8140C
Lifting capacity 4000kg
Lifting height Main1750mm  Jack350mm
Min.Height 200mm
Liting time 50-60s
Length of the platform 4500mm
Platform width 645mm
Motor power 3.0kw-380v or3.0kw-220v
Oil pressure Rating 24Mpa
Air pressure 0.6-0.8Mpa
Weight 2320kg

Characteristics:

1. This kind of scissor lift is hydraulic four wheel positioning, apply to various level of automobile of professional high-precision four wheel alignment and vehicle inspection, repair and maintenance.
2. the machine's mainly hydraulic components selected Italy, Germany high quality imported parts assembly, adopting dual gear, hydraulic and electrical tripling protection, safe, reliable, synchronous stable running.
3. Oil cylinder with upper return oil, prevent oil cylinder rust.
