WD-8350

WD-8350

★ 30 years production experience ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

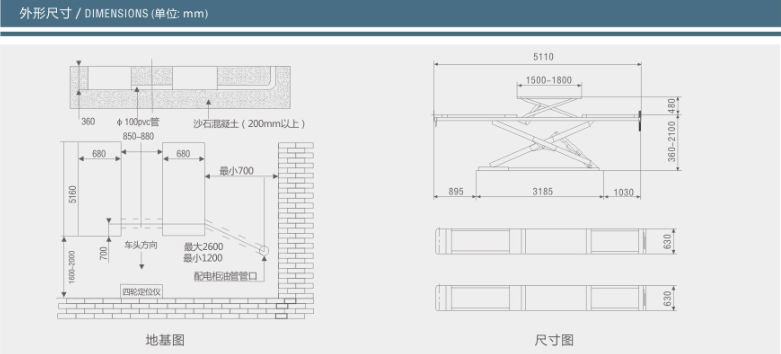

Technical Specifications:

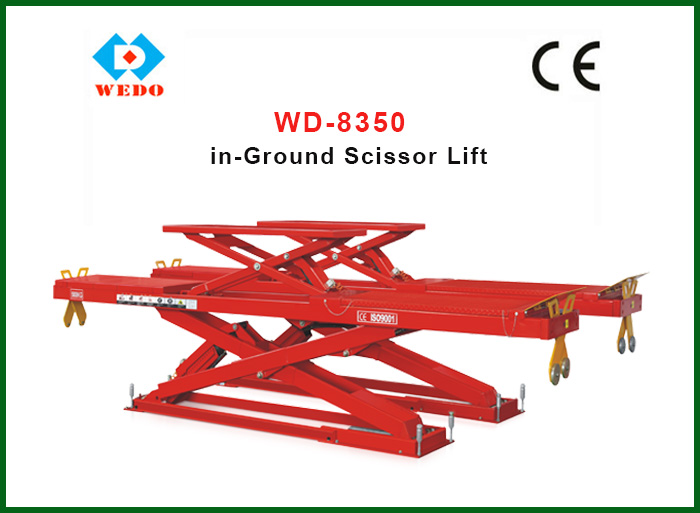

IN-GROUND SCISSOR LIFT WD-8350
Lifting capacity 5000kg
Lifting height Main2100mm  Jack480mm
Min.Height 360mm
Liting time 70-90s
Length of the platform 5000mm
Platform width 630mm
Motor power 3.0kw-380v or3.0kw-220v
Oil pressure Rating 24Mpa
Air pressure 0.6-0.8Mpa
Weight 2500kg

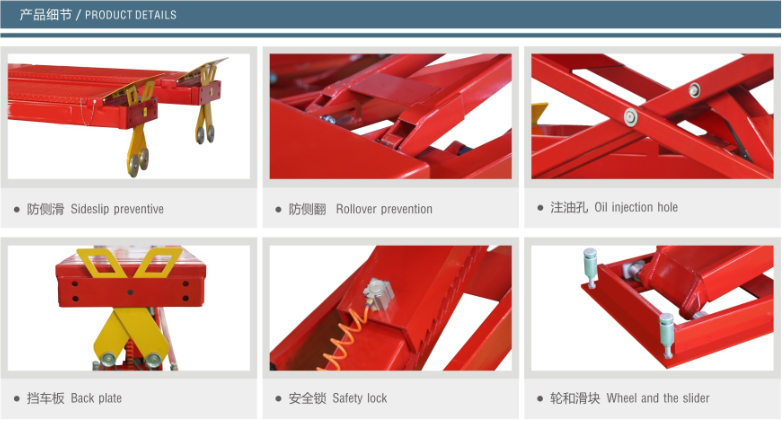

Characteristics:

Alignment scissor lift apply to small type vehicle for four wheel alignment and maintenance, the characteristics:
1. In-ground mounted, occupied small space
2. Electric air lock, safety and reliable
3. Hydraulic system adopts the advanced integrated valve plate oil and imports of seal parts
4. Power failure can adopt manually will the car drop out
5. Oil cylinder with upper return oil, prevent oil cylinder rust
