WD-8340C

WD-8340C

★ 30 years production experience ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

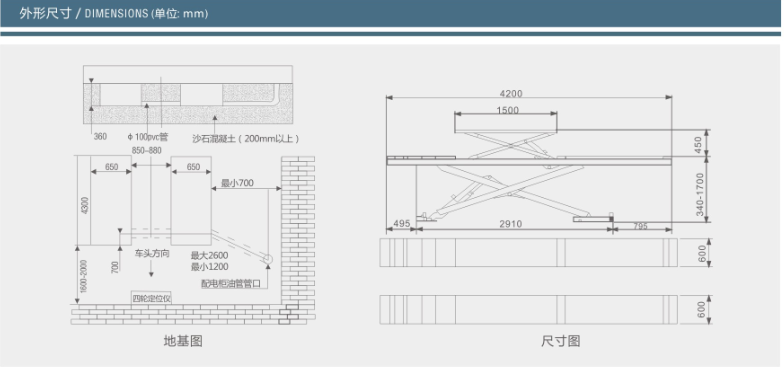

Technical Specifications:

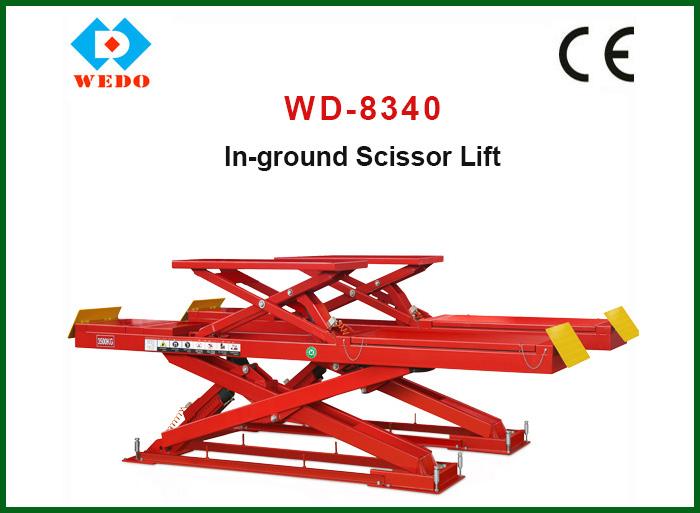

IN-GROUND SCISSOR LIFT WD-8340C
Lifting capacity 3500kg/4000kg
Lifting height Main1700mm  Jack450mm
Min.Height 340mm
Liting time 50-60s
Length of the platform 4200mm/4500mm
Platform width 600mm/600mm
Motor power 3.0kw-380v or3.0kw-220v
Oil pressure Rating 24Mpa
Air pressure 0.6-0.8Mpa
Weight 1760kg/1900kg

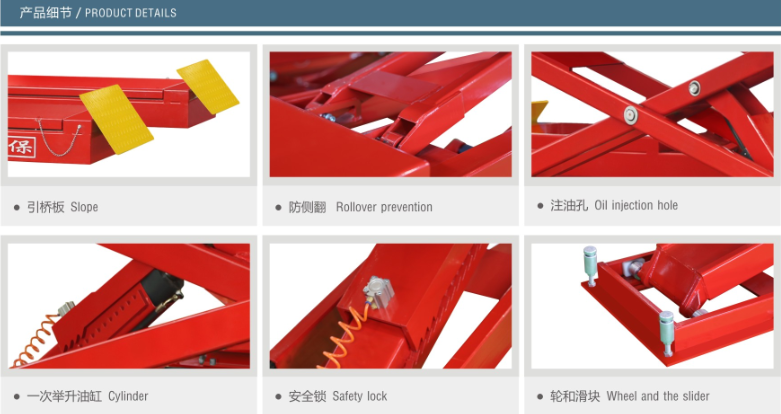

Characteristics:

Alignment scissor lift apply to small type vehicle for four wheel alignment and maintenance, the characteristics:
1. In-ground mounted, occupied small space
2. Electric air lock, safety and reliable
3. Hydraulic system adopts the advanced integrated valve plate oil and imports of seal parts
4. Power failure can adopt manually will the car drop out
5. Oil cylinder with upper return oil, prevent oil cylinder rust
