Description

TLT632A

Standard 3t small double scissor lift.
In-ground installation type, without occupying space.
It’s convenient for demounting tyres and repairing chassis with synchronous hydraulic dylinders assembly.
The lift features advanced, deft and reasonable design, durability, and compact layout.
Anti-explosion safety device makes it stable and reliable operation.
Travel limit safety device, protects machine from being damaged.
All moving points adopt automatic lubricating oil-free bearing for ensuring long lifespan.
Oil hose anti-explosion device.
CE certificated.

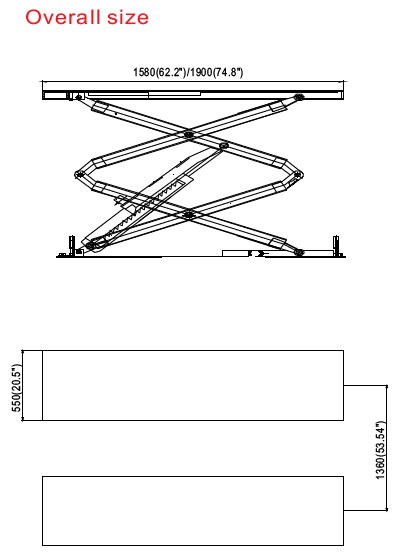

Specification

Rated load：3000kg
Lifting height：1900mm
Initial height：300mm
Lifting time：≤50s
Lowering time：≥20s
Runway width：520mm
Runway length：1580～1900mm
Advised distance between two runways：800mm
Overall width:1840mm
Safety method：Mechanical safety lock + pneumatic release
Motor power ：2. 2kw
Motor voltage：3 phase/380v or Single phase/220V
