TLT632AF

TLT632AF

This lift is designed for the purpose of lifting light vehicles(with low profile) under 3.2 tons for vehicle test, service and cleaning

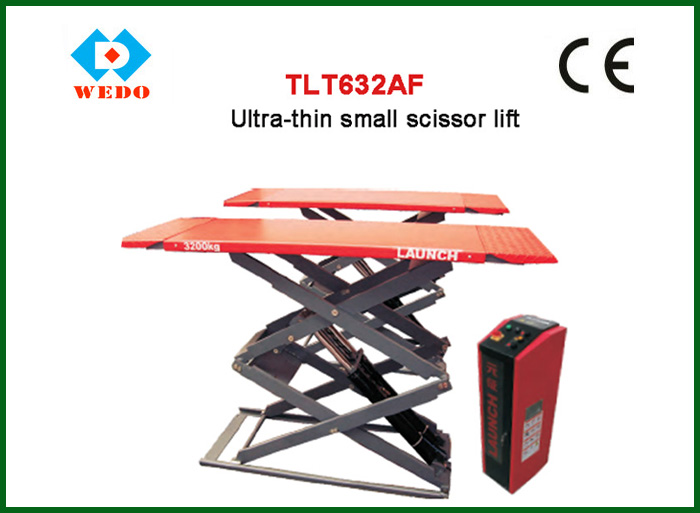

•  Ultra-tin 3t small scissor vehicle lift.
• The platform is extendable.
• Ultra-thin structure design is applicable for on-ground arrangement ,technical cooperation with.Italy ,four hydraulic cylinders design ,convenient for demounting tyres and repairing chassis.
• Hydraulic interlocking and anti-explosion safety device makes it stable and reliable operation.
• Bilateral hydraulic synchronizing system ensures high synchronization performance.
• Travel limit safety device ,protects machine from being damaged.
• All moving points adopt automatic lubricating oil-free bearing for ensuring long lifespan.
• Oil hose anti-explosion device.
• CE-STOP function with safety alarm beep would automatically warn operators to keep safe distance from lift when it lowers to 400mm high from ground.
• CE certificated

Specifications
 Rated load：3200kg
Lifting height：2000mm
Initial height：≤110mm
Lifting time：≤60s
Lowering time：≥20s
Runway width：620mm

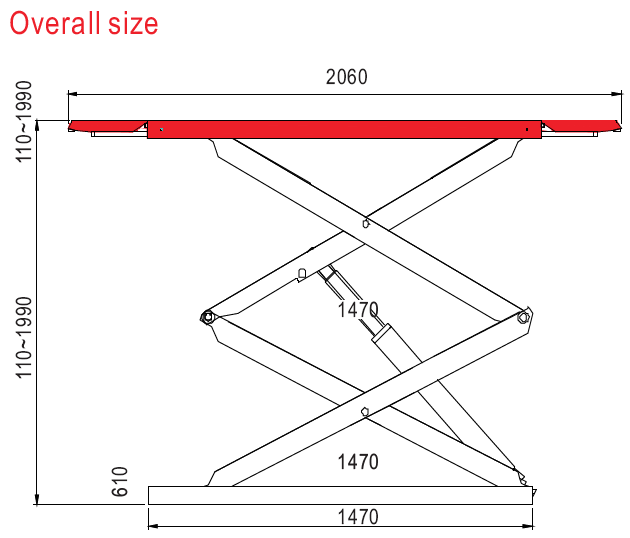

Runway length：1460～2060mm

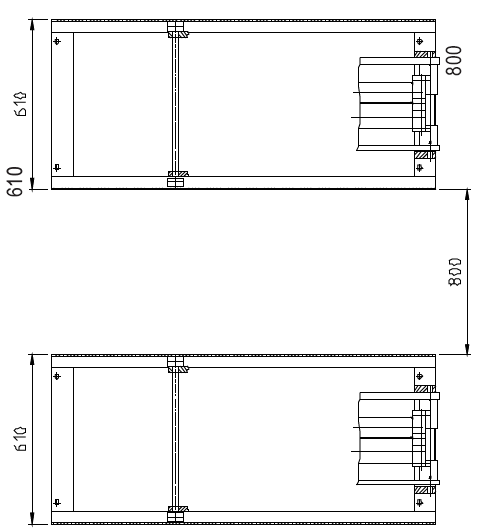

Advised distance between two runways： 800mm
Overall width:2040mm
Safety method：Mechanical safety lock + pneumatic release
Motor power ：2. 2kw
Motor voltage：3 phase/380v or Single phase/220V
