WD-8540

WD-8540

★ 30 years production experience ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

Technical Specifications:

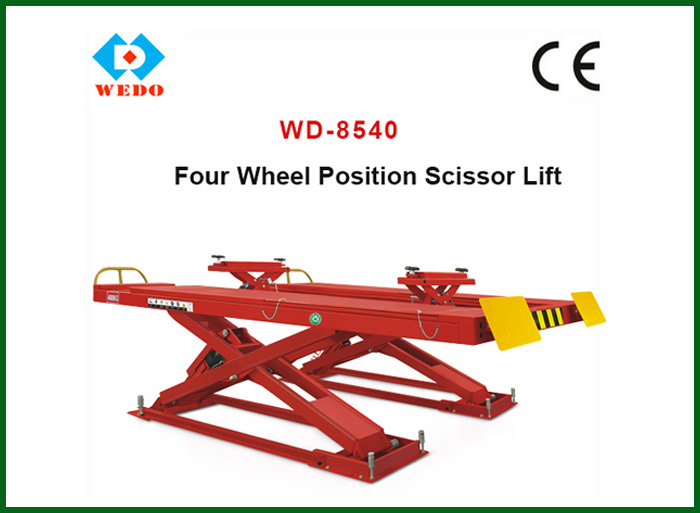

IN-GROUND PULLEY SCISSOR LIFT WD-8540
Lifting capacity 4000kg
Lifting height Main1700mm  Jack450mm
Min.Height 340mm
Liting time 50-60s
Length of the platform 4480mm
Platform width 600mm
Motor power 3.0kw-380v or3.0kw-220v
Oil pressure Rating 24Mpa
Air pressure 0.6-0.8Mpa
Weight 1900kg


Characteristics:

1. Hydraulic synchronous control, synchronization precision
2. The hydraulic systerm adopts Italy electromagnetic valve and imports of seal, ensure the stability and sevice life of the machine
3. This machine is composed of a machine frame, hydraulic system, pneumatic system and electric system is composed of four parts
4. Can be matched with various locating turntable
5. Oil cylinder with upper return oil, prevent oil cylinder rust
