WD-S-302A

WD-S-302A

★ 30 years production experience ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

Technical Specifications:

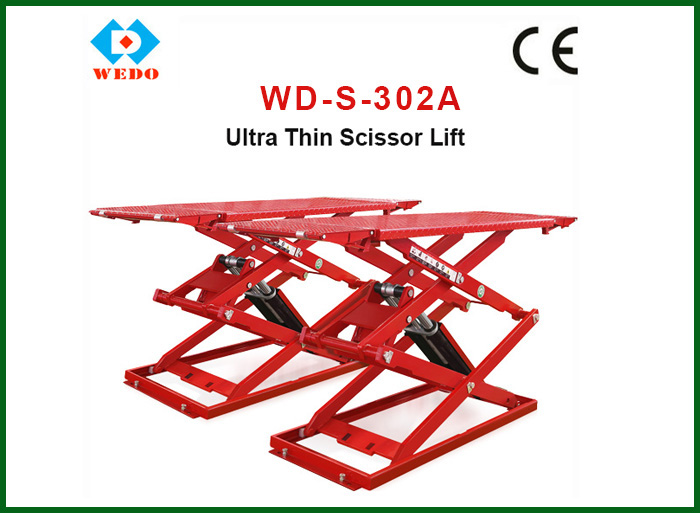

ULTRA THIN SCISSOR LIFT WD-S-302A
Lifting capacity 3500kg
Lifting height 1850mm
Min.Height 105mm
Liting time 70-90s
Length of the platform 1450mm
Platform width 635mm
Motor power 3.0kw-380v or3.0kw-220v
Oil pressure Rating 24Mpa
Air pressure 0.6-0.8Mpa
Weight 850kg

Characteristics:

1. Ultrathin structure, surface mount, the initial landing height is 105mm, occupied small space
2. The Italy original imported hydraulic pump valve and electrical components
3. Double cylinder drive, safe and stable synchronization
4. Meet the needs of different vehicles repair and detection
5. One button to adjust balance and upper return oil, prevent oil cylinder rust.
