Description

Technical Specifications:

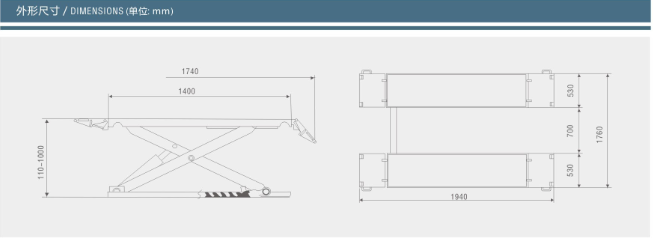

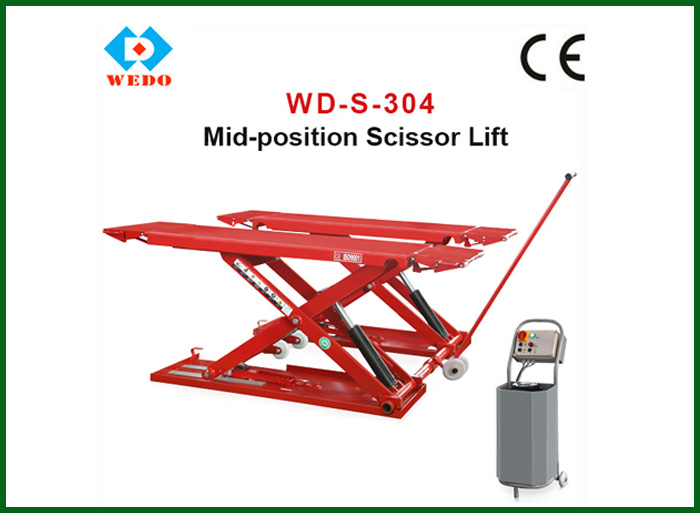

MID-POSITION SCISSOR LIFT WD-S-304
Lifting capacity 3000kg
Lifting height 1000mm
Min.Height 110mm
Liting time 50s
Length of the platform 1400mm
Platform width 530mm
Motor power 3.0kw-380v or3.0kw-220v
Oil pressure Rating 24Mpa
Air pressure 0.6-0.8Mpa
Weight 580kg

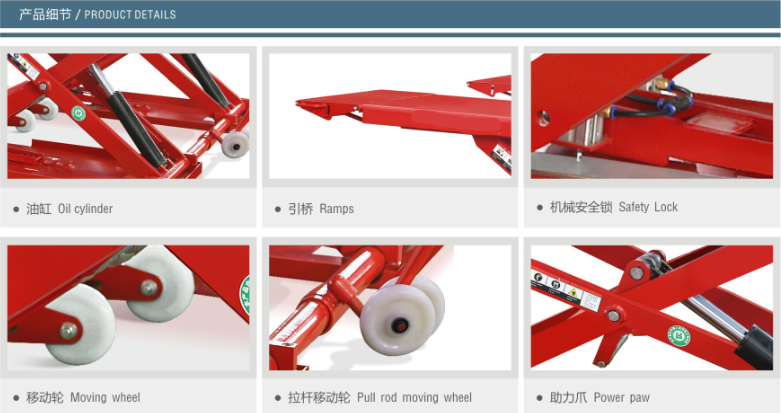

Characteristics:
1. The lifting platform extension, according to the different  models of the vehicle support the ramp and extension, flexible use, cover small space
2. Pneumatic release, safe and reliable
3. The initial height is lower(110mm), have sliding ramp and extension
4. Adopt axis drived, synchronization performance good, lifting capacity well.
5. Hydraulic system adopted imported electromagnetic valve and seal components, ensure the stability and working life of the machine.
6. When the power supply is off, lift and vehicle can be down by manual
7. Rising and falling have safety alarm device.
8. Oil cylinder with upper return oil, prevent oil cylinder rust.
