WD-C2240

WD-C2240

★ 30 years production experience ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

Technical Specifications:

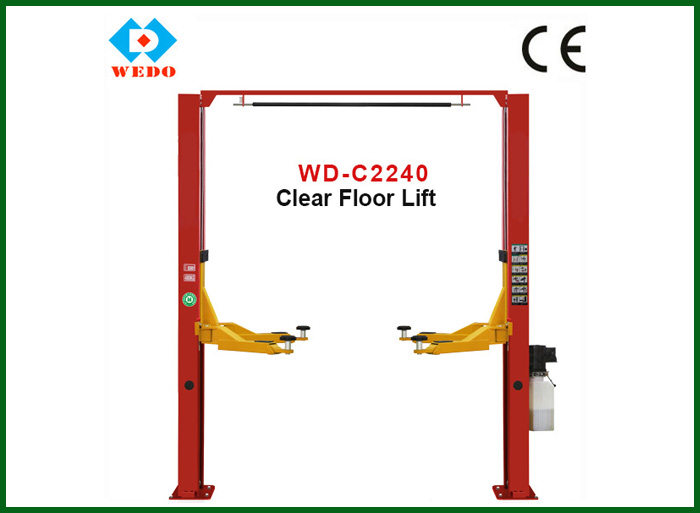

CLEAR FLOOR LIFT WD-C2240
Lifting capacity 4000kg
Lifting height 1850mm
Min.height 100mm
Pass width 2560mm
Column width  2790mm
Total width 3280mm
Lifting time 50-60s
Motor power 2.2kw-380v or 2.2kw-220v
Oil pressure rating 24Mpa
Weight 600kg

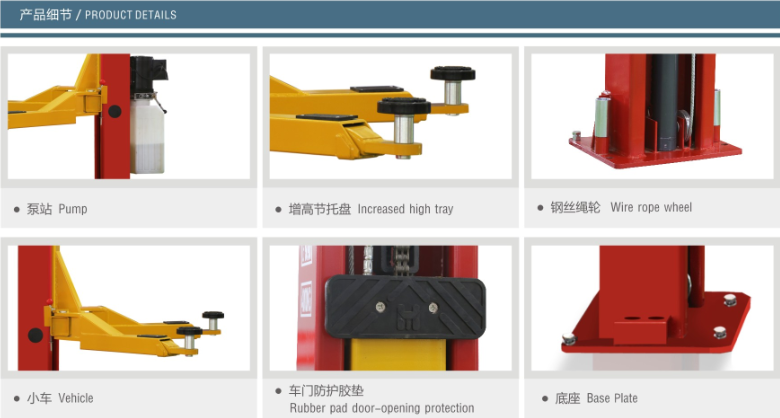

Characteristics:

1. Clear floor design, save space
2. Adopt double cylinder, 4×4 higher and stronger chain, the wire rope balance system
3. Bilateral manual release
4. Rubber pad door-opening pretection
5. Rubber support pad adopts double helix adjustment height and height increase join
6. Limit switch
7. The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, thress-node arm optional installation.
