WD-M2240

WD-M2240

★ 30 years production experience ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

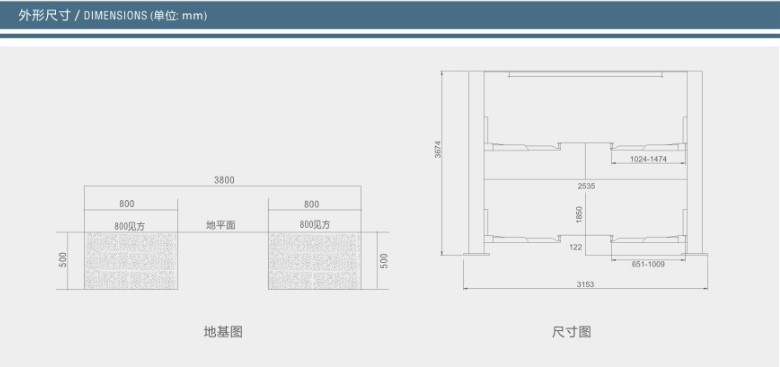

Technical Specifications:

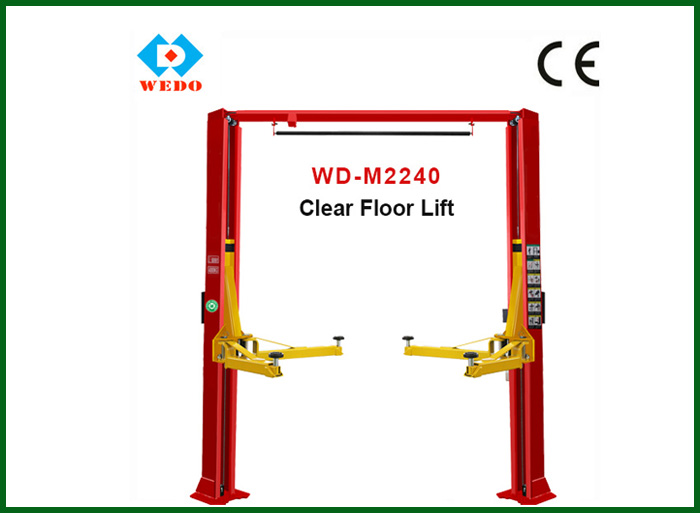

ASYMMETRIC ONE SIDE RELEASE CLEAR FLOOR LIFT WD-M2240
Lifting capacity 4500kg
Lifting height 1900mm
Min.height 120mm
Pass width 2555mm
Column width  2865mm
Total width 3650mm
Lifting time 50-60s
Motor power 2.2kw-380v or 2.2kw-220v
Oil pressure rating 24Mpa
Weight 730kg

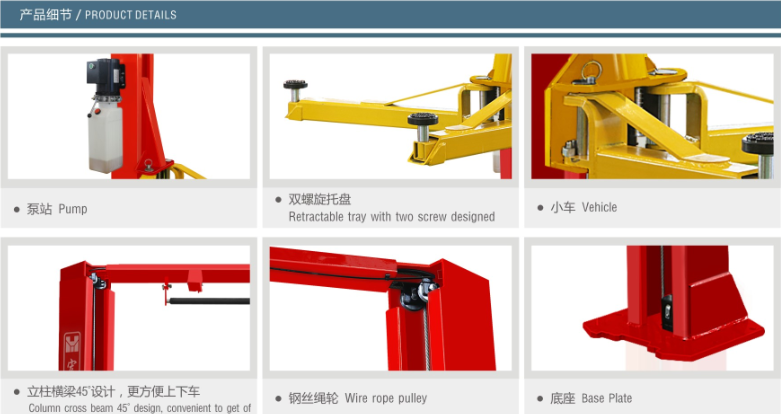

Characteristics:

1. Clear floor design, save space
2. Adopt double cylinder, 4×4 higher and stronger chain, the wire rope balance system
3. One side manual release
4. Rubber pad door-opening pretection
5. Rubber support with first, second and third level spiral to adjust the height.
6. Limit switch
7. The arm adopts long and short arm design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation
