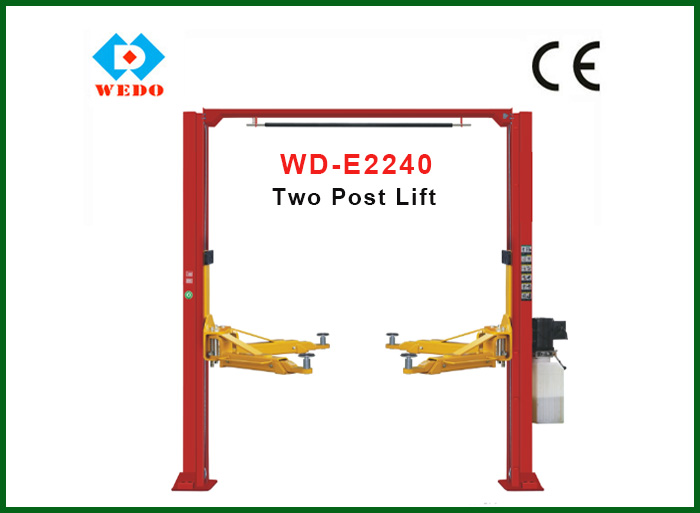

WD-E2240

WD-E2240

★ 30 years production experience ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

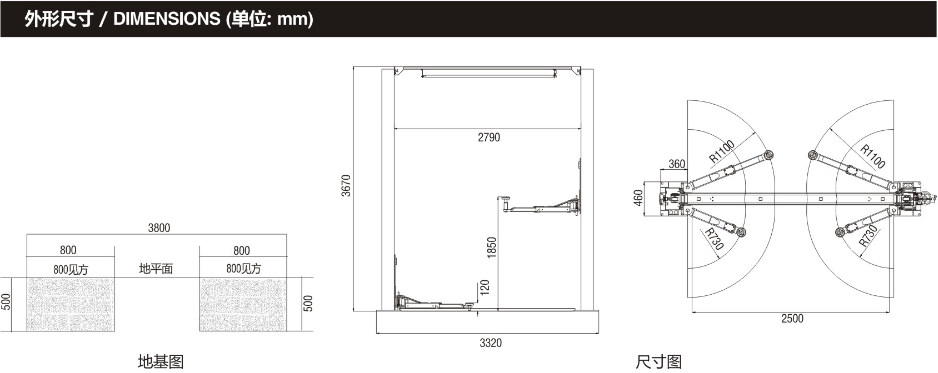

Technical Specifications:

CLEAR FLOOR LIFT WD-E2240
Lifting capacity 4000kg
Lifting height 1850mm
Min.height 120mm
Pass width 2500mm
Column width  2790mm
Total width 3320mm
Lifting time 50-60s
Motor power 2.2kw-380v or 2.2kw-220v
Oil pressure rating 24Mpa
Weight 650kg

Characteristics:

Clear floor lift apply to all small type vehicle maintenance
1. Clear floor design, save space
2. Adopt double cylinder, 4×4 higher and stronger chain, the wire rope balance system
3. Bilateral manual release
4. Rubber pad door-opening pretection
5. Secure fence protect the toes
6. Rubber support pad adopts double helix adjustment height and height increase join
7. Limit switch
8. The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, thress-node arm optional installation.
