WD-6140

WD-6140

★ 30 years production experience ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

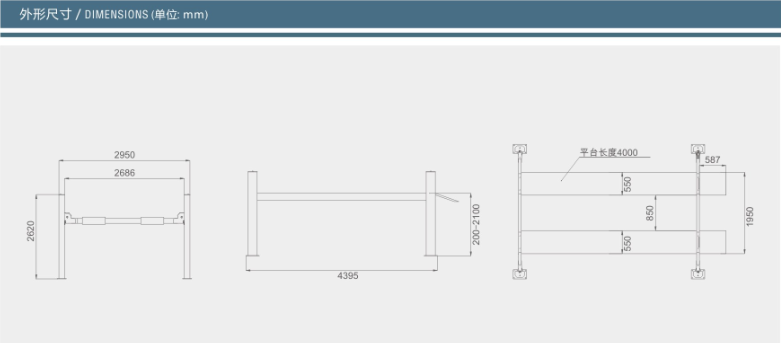

Technical Specifications:

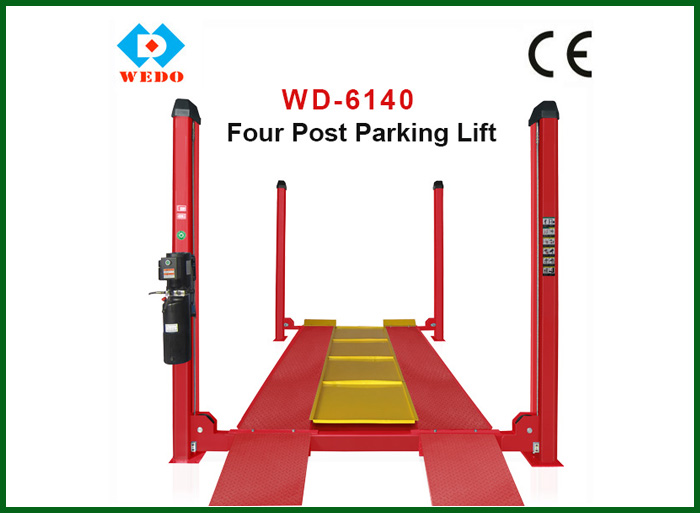

FOUR POST PARKING LIFT WD-6140
Lifting capacity 4000kg
Lifting height 2100mm
Min.Height 200mm
Liting time 50-60s
Length of the platform 4000mm
Platform width 550mm
Motor power 2.2kw-380v or 2.2kw-220v
Oil pressure Rating 24Mpa
Weight 1200kg

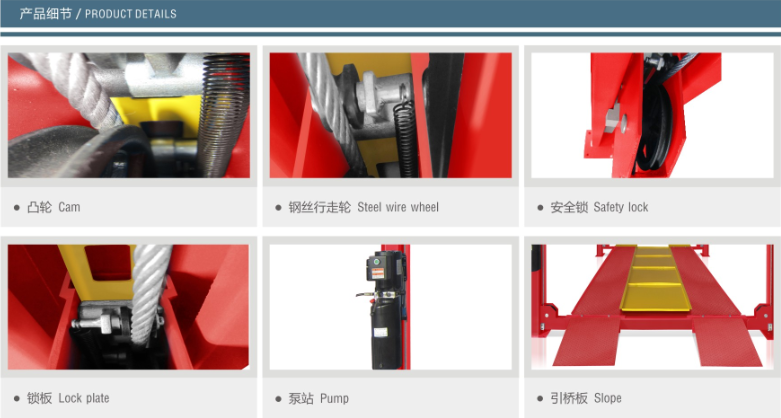

Characteristics:

1. Adopt landing control lock device
2. Hydraulic power unit configuration throttling device, they can always adjust the rate of decline
3. Hydraulic cylinder drive, rope drive, quiet and smooth lifting
4. With wire control security lock, with a wire rope fracture protection, operation safety.
5. Adopt electrical release, eight-point locking system, easy to operate
6. Can be locked in the desired height of operation, safety and reliability.
