WD-6340

WD-6340

★ 30 years production experience ★ 12 months quality warranty ★ CE certificate approved ★ All machines are tested well before shipping ★ Fast Delivery
Products Inquiry

Description

Technical Specifications:

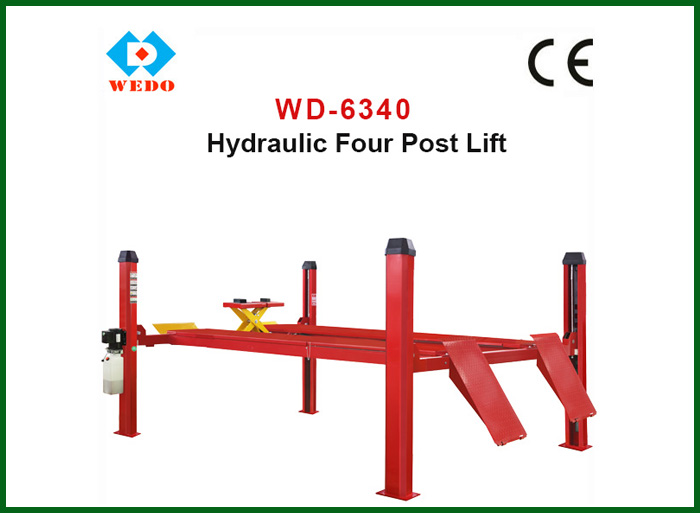

HYDRAULIC FOUR POST LIFT WD-6340
Lifting capacity 3500kg/4000kg/5000kg
Lifting height Main 1500mm  Jack350mm
Min.Height 200mm
Liting time 50-60s
Length of the platform 4200mm/4500mm/5000mm
Platform width 550mm
Motor power 2.2kw-380v or 2.2kw-220v
Oil pressure Rating 24Mpa
Air pressure 0.6-0.8Mpa
Weight 1200kg/1250kg/1350kg


Characteristics:

1. Adopt the electric release, manual and pneumatic release
2. Hydraulic power unit configuration throtting device, then can always adjust the rate of decline
3. Hydraulic cylinder drive, rope drive, quiet and smooth lifting
4. With wire control security lock, with a wire rope fracture protection, operation safety.
5. Adopt electrical release, eight-point locking system, easy to operate
6. Can be locked in the desired height of operation, safety and reliability.
7. Runway spacing is asjustable for different wheel base vehicle
8. With the second lift pulley, can adopt the manual release, pneumatic release and hydraulic
